Product
시스템엔지니어링코리아는 최고의 솔루션을 제공합니다.
다른제품보기
> Product > Sensor

Load cell

Single Point, Miniature, S Type,
Shear Beam, Shackles,
Spoke Type Load pins.
click

Torque sensors

Static, Dynamic.
click

Special type

Gyro, handle torque,
weighing module.
click
Load cell

Micro Load Cell

· Range : 10,30,50kg
· Non-linearity : 0.05%F.S

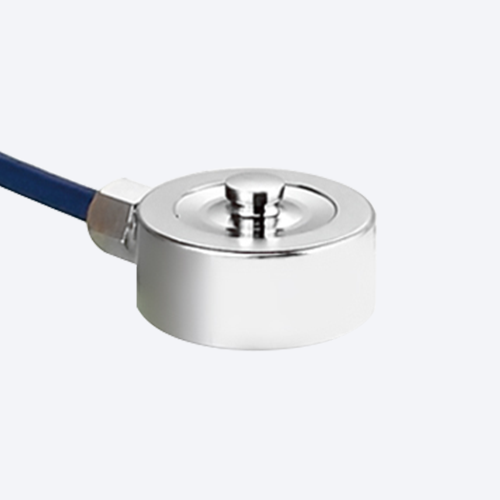

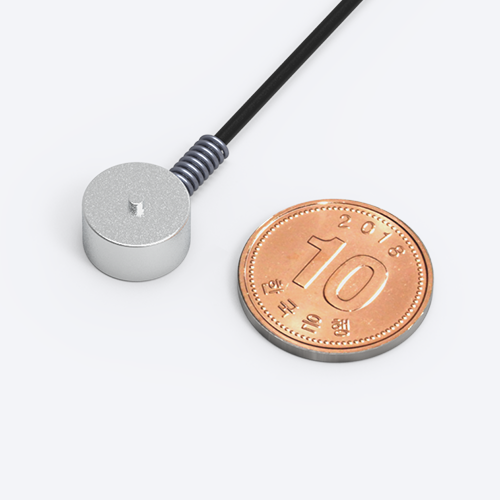

Miniature Button Load Cell

· Range : 3,5,10,20,30,50,100kg
· Non-linearity : 0.1%

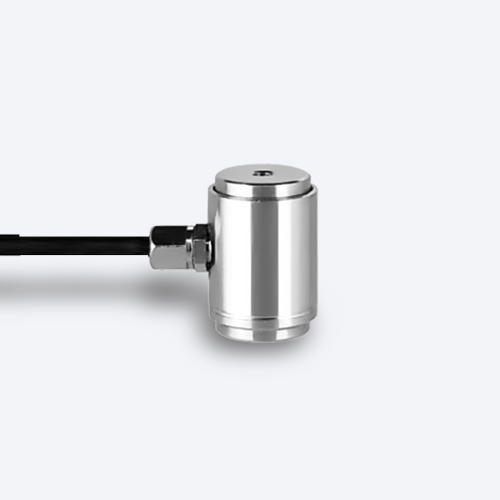

Mini Column Force Load Cell

· Range : 10, 20, 50, 100, 150,
200, 300, 500N
· Non-linearity : 0.05%

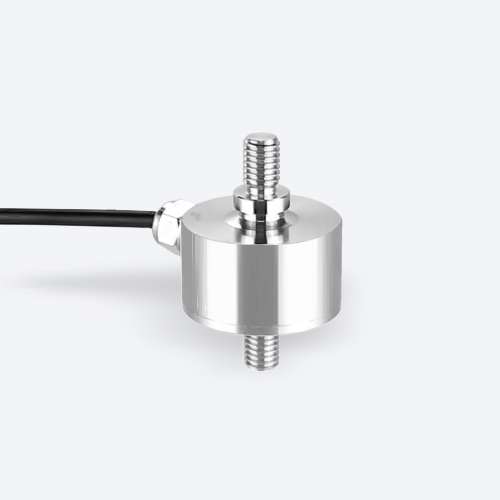

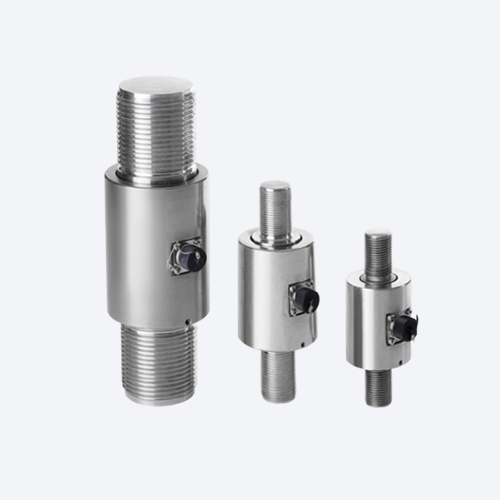

Miniature Compression & Tension
Load Cell

· Range : 0.5,1,1.5,2,3,5KN
· Non-linearity : 0.2%

Miniature Donut Washer type
Load Cell

· Range : 10,20,30,50,100,200KN
· Non-linearity : 0.1%F

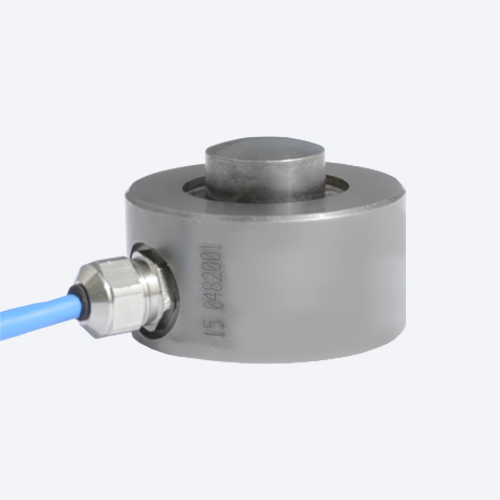

Miniature Compression Button
Load Cell

· Range : 10,20,30,50,100,200KN
· Non-linearity : 0.1%F

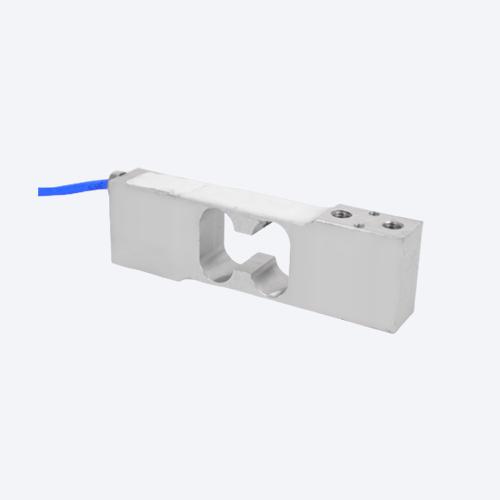

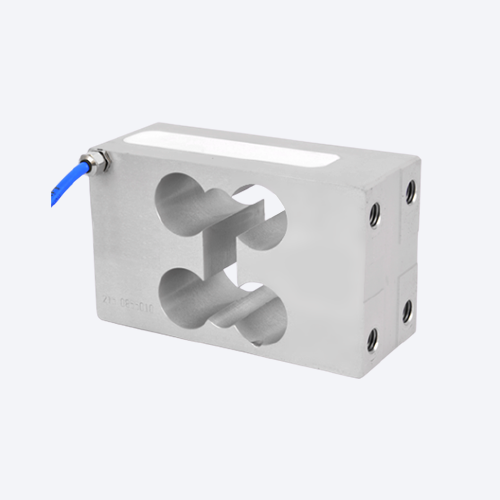

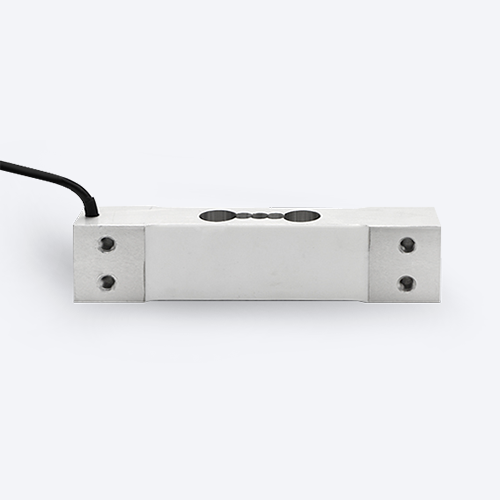

Single Point Load Cell

· Range : 3, 5, 6, 10, 15, 20, 30, 40,
50, 60, 100, 120kg
· Accuracy : C2/C3

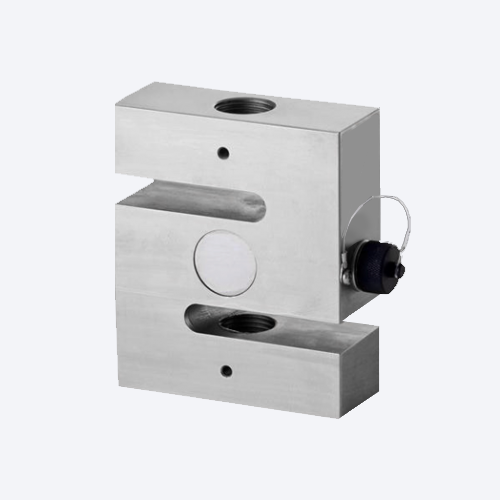

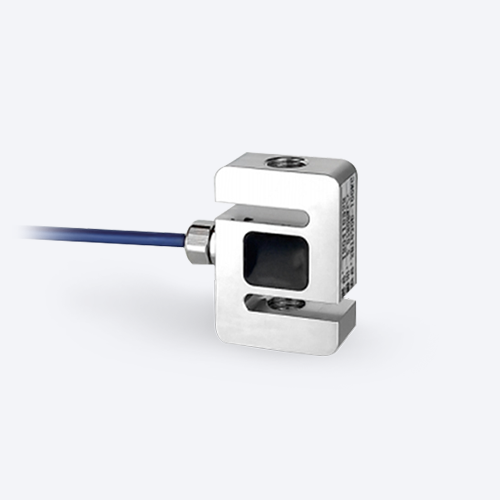

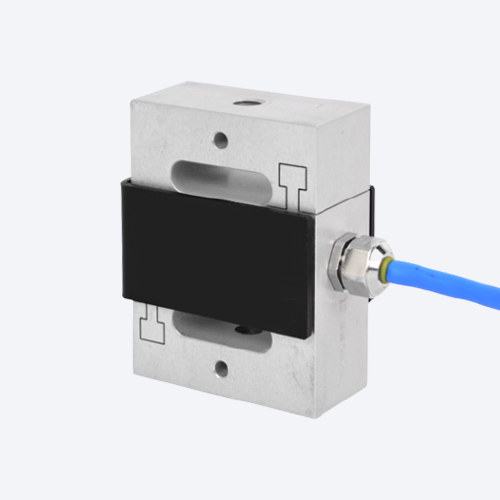

Miniature S type Load Cell

· Range : 2, 5, 10, 15, 20, 30, 50, 100, 200kg · Non-linearity : 0.1%F.S

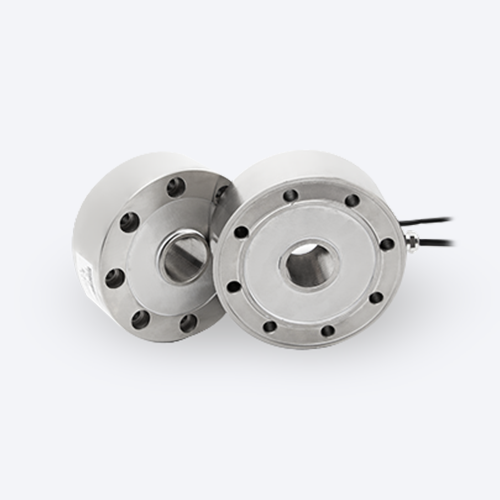

Spoke type Load Cell

· Range : 0.5~100t
· Comprehensive Error : ±0.05%

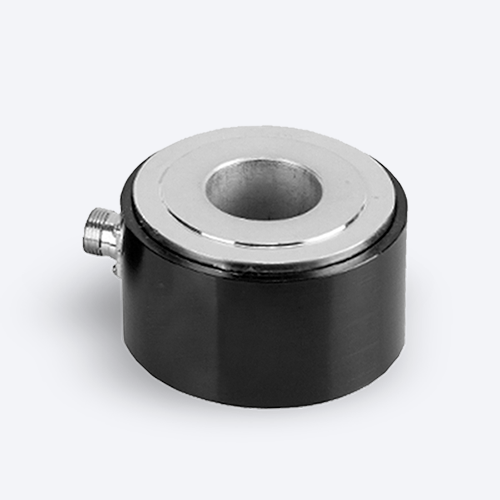

Donut Through Hole Load Cell

· Range : 120,180,22,260,330,400KN
· Comprehensive Error : ±0.1%

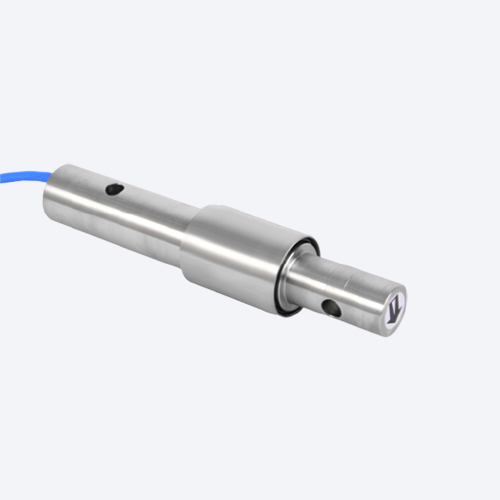

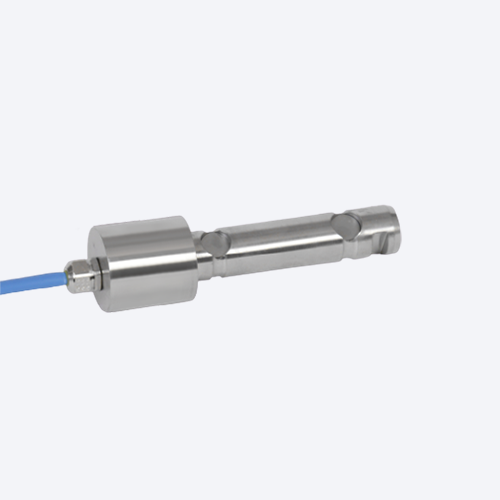

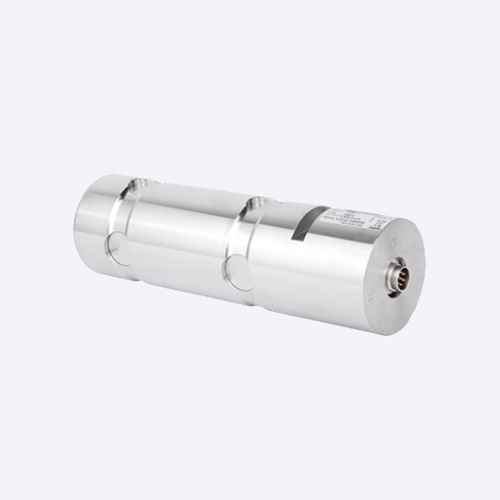

Shaft Pin Load cell

· Range : 1~5t
· Accuracy : ±0.5%

Multi-rope Elevator Load Sensor

· Range : 1500/5000kg
· Total Error : ± 0.5%F.S

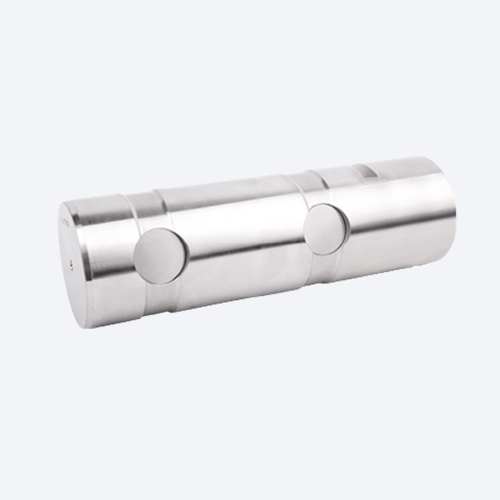

5300 Standard Load pins

· Range : 0.5~125t
· Accuracy : SL-LIFT (0.5%F.S),
SL-FORCE (0.25%F.S),
SL-HOIST (0.5%F.S)

5000 Custom-made Load pins

· Range : 0.5~2000t
· Accuracy : SL-LIFT (0.5%F.S),
SL-FORCE (0.25%F.S),
SL-HOIST (0.5%F.S)

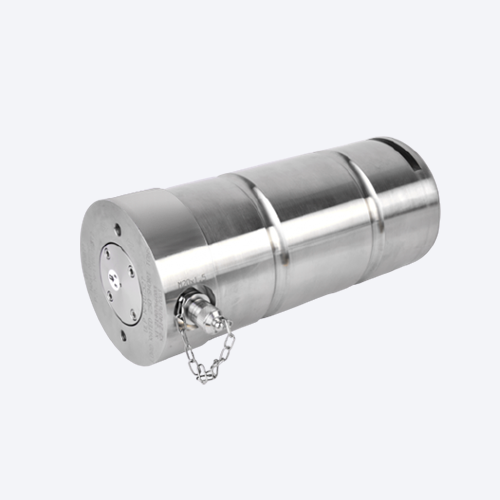

5050 Subsea, Submerged Load pins

· Range : 0.5~2000t
· Accuracy : SL-FORCE(0.25%F.S),
SL-HOIST(0.5%F.S)

5600 Economical Custom-made
Load pins

· Range : 0.5~6.3t
· Accuracy : SL-FORCE(0.25%F.S),
SL-HOIST(0.5%F.S)

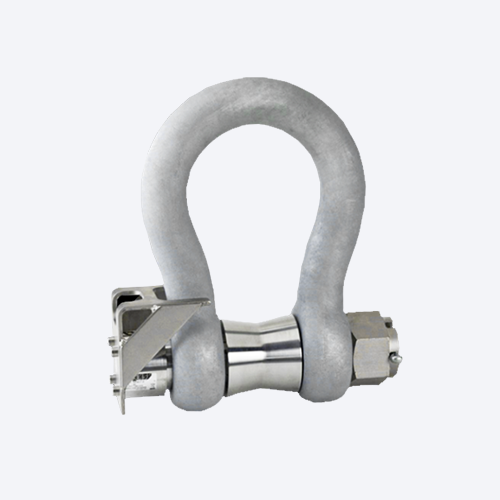

5000M Load Shackles

· Range : 1~2000t
· Accuracy : SL-FORCE(0.25%F.S),
SL-HOIST(0.5%F.S)

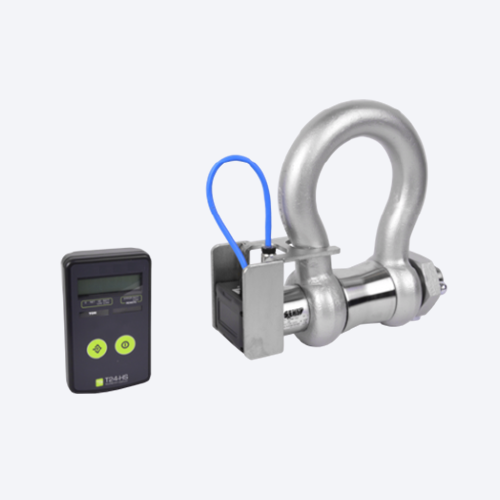

5000M-WI Wireless Load Shackles

· Range : 1~2000t
· Accuracy : SL-FORCE(0.25%F.S),
SL-HOIST(0.5%F.S)

5580-5585 Running Line
Tensiometers With Removable
Center Sheave

· Range : 1~40t
· Accuracy : 2~5%

Torque sensor

Static Torque Sensor

· Range : 0~0.1, 0.2, 0.5, 1, 2, 3, 5, 10N.M
· Comprehensive error : ≤±0.1%, ±0.3%

Static Torque Sensor

· Range : 1, 2, 3, 5, 6, 10, 20, 30, 50,
100, 150N.M
· Comprehensive error : ≤±0.1%, ±0.3%

Static Torque Sensor

· Range : 0~10, 20, 30, 50, 100
200, 500, 1000N.M
· Non-linearity : 0.1, 0.3%F.S

Dynamic Torque Sensor

· Range : 0~0.1, 0.2, 0.3, 0.5, 1, 2, 3, 5, 5N.M
· Non-linearity : 0.1, 0.3%F.S

Dynamic Non-Contact Torque Sensor

· Range : 0~10, 20, 30, 50, 100
200, 500, 1000N.M
· Accuracy : ±0.1%F.S, ±0.25%F.S, ±0.5%F.S

Special

Steering wheel torque

· Real easy connection
· Nominal (rated) torques: 200 N m
· High permissible oscillation stress
· Non mechanical connection for angle signal measuring
· Nominal (rated) angle: 0 to 1080˚
· Optional: Acceleration and Pitching, Yawing, Rolling

Gyro

· Accuracy
Roll/Pitch (static) 0.5° 1σ RMS
Roll/pitch (dynamic) 0.8° 1σ RMS
Yaw (dynamic) 2° 1σ RMS
· Performance
Gyroscope full-scale range: ±2000º/s
Gyroscope bias stability: 10 deg/hr
Gyroscope noise density: 0.007º/s/Hz
Gyroscope non-linearity: 0.1% FS
Accelerometer full-scale range: ±16 g
Accelerometer bias stability: 0.03 mg
Accelerometer noise density: 120 g/Hz
Accelerometer non-linearity: 0.5% FS

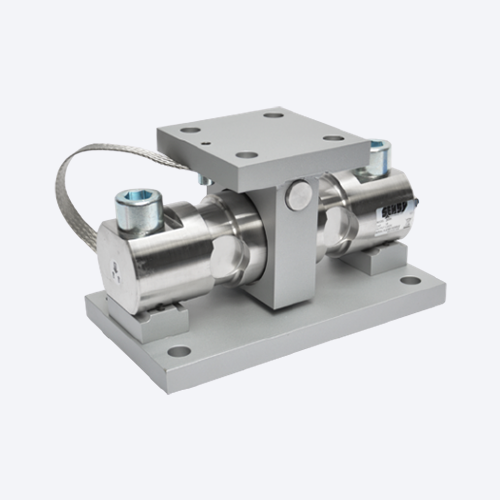

Weighing sensor

· Nominal Strain: 500μm/m
· Nominal Sensitivity: 0.6mV/V (Nominal)
· Zero Balance: +1% R.O.
· Compensated Temp. Range: -10~40°C
· Operating Temp. Range: -20-80°C
· Temp. Effect on Rated Output: 0.5% LOAD/10°C
· Temp. Effect on Zero Balance: 0.5% R.O./10°C
· Bridge Resistance: Nominal 350 ohms
· Insulation Resistance (Min.): 2000M ohm at 50V DC
· Excitation Voltage: 3~12V (Recommended). 15V(Max.)
· Cable: Ø5mmx10m (28AWG X 6C Shielded)
· Protection Class: IP64
· Safe Overload: 150% R.C.
· Ultimate Overload: 300% R.C.
· Material: Alloy Steel
